Product Summary
The TMS320C6424ZDU6 is a Fixed-Point Digital Signal Processor. The TMS320C6424ZDU6 is based on the third-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making the DSP an excellent choice for digital signal processor applications. The TMS320C6424ZDU6 is upward code-compatible from previous devices that are part of the C6000 DSP platform. The TMS320C6424ZDU6 supports added functionality and have an expanded instruction set from previous devices. The applications of the device include Telecom, Audio and Industrial Applications.
Parametrics
TMS320C6424ZDU6 absolute maximum rtings: (1)Supply voltage ranges: – 0.5 V to 1.5 V; (2)Input voltage ranges:– 0.5 V to 4.2 V; (3)Output voltage ranges: – 0.5 V to 4.2 V; (4)Operating Junction temperature ranges, TJ: 0 to 90℃; (5)storage temperature range, Tstg: -65 to 150℃.
Features
TMS320C6424ZDU6 features: (1)High-Performance Digital Signal Processor; (2)C64x+ Instruction Set Features; (3)Byte-Addressable (8-/16-/32-/64-Bit Data); (4)8-Bit Overflow Protection; (5)Bit-Field Extract, Set, Clear; (6)Normalization, Saturation, Bit-Counting; (7)VelociTI.2 Increased Orthogonality; (8)C64x+ Extensions; (9)Compact 16-bit Instructions; (10)Additional Instructions to Support Complex Multiplies; (11)NAND (8-/16-Bit-Wide Data); (12)Enhanced Direct-Memory-Access (EDMA) Controller (64 Independent Channels); (13)Two 64-Bit General-Purpose Timers (Each Configurable as Two 32-Bit Timers); (14)One 64-Bit Watch Dog Timer; (15)Two UARTs (One with RTS and CTS Flow Control); (16)Master/Slave Inter-Integrated Circuit (I2 CBus); (17)Two Multichannel Buffered Serial Ports.

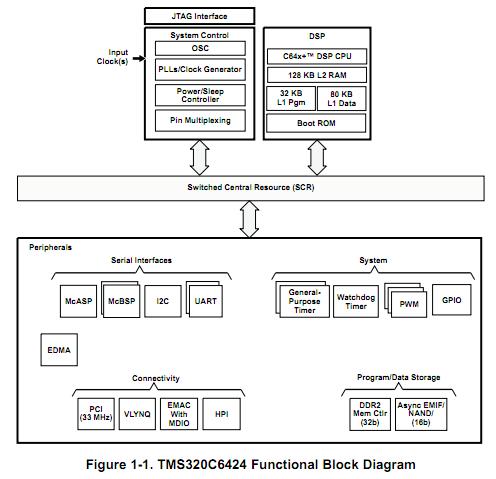

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320C6424ZDU6 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Point Digital Signal Processor |
Data Sheet |
|
|
||||||||||
