Product Summary
The TMP125AIDBVR is a SPI-compatible temperature sensor available in the tiny SOT23-6 package. Low supply current, and a supply range from 2.7V to 5.5V, make it an excellent candidate for low-power applications. The TMP125AIDBVR is ideal for extended thermal measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications. The applications of the TMP125AIDBVR include: (1)base station equipment; (2)computer peripheral thermal protection; (3)notebook computers; (4)data acquisition systems; (5)telecom equipment; (6)office machines.
Parametrics
TMP125AIDBVR absolute maximum ratings: (1)Supply Voltage: +7V; (2)Input Voltage: -0.3V to +7V; (3)Input Current: ±10mA; (4)Operating Temperature Range: -55℃ to +125℃; (5)Storage Temperature Range: -60℃ to +150℃; (6)Junction Temperature (TJ max): +150℃; (7)Lead Temperature (soldering): +300℃; (8)ESD Rating (Human Body Model): 4000V, (Charged Device Model): 1000V.
Features
TMP125AIDBVR features: (1)digital output: spi-compatible interface; (2)resolution: 10-bit, 0.25℃; (3)accuracy: ±2.0℃ (max) from -25℃ to +85℃, ±2.5℃ (max) from -40℃ to +125℃; (4)low quiescent current: 50μa (max); (5)wide supply range: 2.7v to 5.5v; (6)tiny sot23-6 package; (7)operation from -40℃ to +125℃.

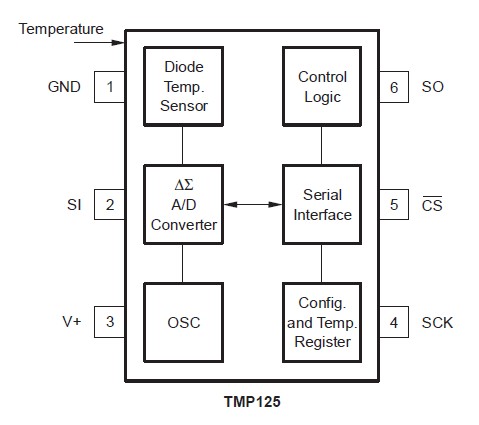

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP125AIDBVR |
Texas Instruments |
Board Mount Temperature Sensors 2 DegC Accurate Dig w/SPI Interface |
Data Sheet |
|
|
||||||||
|
TMP125AIDBVRG4 |
Texas Instruments |
Board Mount Temperature Sensors 2 DegC Accurate Dig w/SPI Interface |
Data Sheet |
|
|
||||||||
