Product Summary
The ADS7841E is a 4-channel, 12-bit sampling Analog-to-Digital Converter (ADC) with a synchronous serial interface. The resolution is programmable to either 8 bits or 12 bits. Typical power dissipation is 2mW at a 200kHz throughput rate and a +5V supply. The applications of the ADS7841E are data acquisition, test and measurement, industrial process control, personal digital assistants, battery-powered systems
Parametrics
ADS7841E absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND: –0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to +6V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
ADS7841E features: (1)Pin for pin with ADS7841; (2)Single supply: 2.7V to 5V; (3)4-channel single-ended or 2-channel differential input; (4)Up to 100kHz conversion rate; (5)86dB sinad; (6)Serial interface; (7)SSOP-16 package.

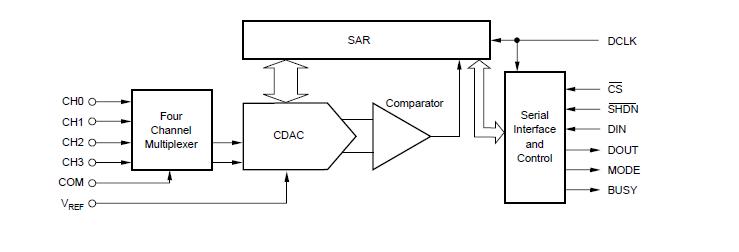

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7841E |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841E/2K5 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EB |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EB/2K5 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EB/2K5G4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841E/2K5G4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EG4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841ES |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
