Product Summary

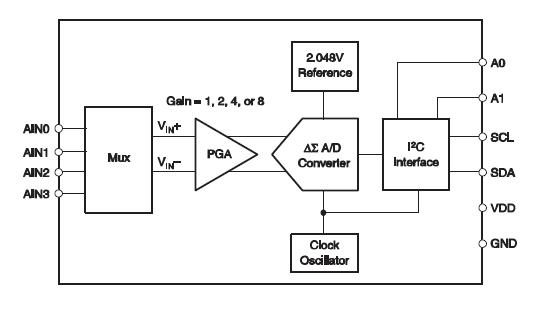

The ADS1112IDRCT is a precision, continuously self-calibrating Analog-to-Digital (A/D) converter with two differential or three single-ended channels and up to 16 bits of resolution in the small MSOP-10 and leadless QFN-style (small-outline, no-lead) packages. The onboard 2.048V reference provides an input range of ±2.048V differentially. The ADS1112IDRCT uses an I2C-compatible serial interface and has two address pins that allow a user to select one of the eight I2C Slave addresses. The ADS1112IDRCT operates from a single power supply ranging from 2.7V to 5.5V. The applications of the ADS1112IDRCT include portable instrumentation, industrial process control, smart transmitters, consumer goods, factory automation, temperature measurement.

Parametrics

ADS1112IDRCT absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)Input Current: 100mA, Momentary; (3)Input Current: 10mA, Continuous; (4)Analog Inputs, A0, A1, Voltage to GND: -0.3V to VDD + 0.3V; (5)SDA, SCL Voltage to GND: -0.5V to 6V; (6)Maximum Junction Temperature: +150℃; (7)Operating Temperature Range: -40℃ to +125℃; (8)Storage Temperature Range: -60℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

ADS1112IDRCT features: (1)Complete data acquisition system in the msop-10 and leadless qfn-style packages ; (2)Measurements from two differential channels or three single-ended channels; (3)I2C TM interface—eight addresses pinselectable; (4)Onboard reference: Accuracy: 2.048V ±0.05%; Drift: 5ppm/℃; (5)Onboard PGA; (6)Onboard oscillator; (7)16 bits, no missing codes; (8)INL: 0.01% of FSR max; (9)Continuous self-calibration; (10)Single-cycle conversion; (11)Programmable data rate: 15SPS to 240SPS; (12)Power supply: 2.7V to 5.5V; (13)Low current consumption: 240μA.
