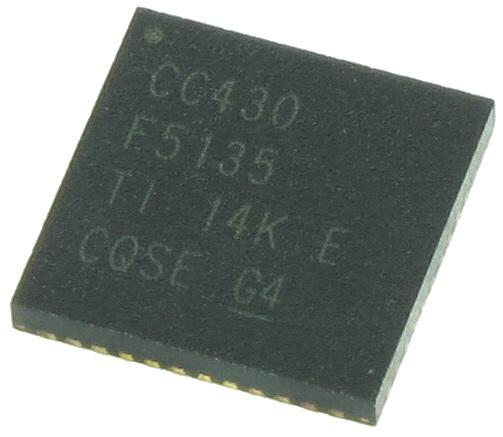

Product Summary
The CC430F5135 is an ultralow-power microcontroller system-on-chip with integrated RF transceiver cores consists of several devices featuring different sets of peripherals targeted for a wide range of applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The CC430F5135 features the powerful MSP430 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. Typical applications for the CC430F5135 include wireless analog and digital sensor systems, heat cost allocators, thermostats, metering (AMR/AMI), smart grid wireless networks etc.
Parametrics
CC430F5135 absolute maximum ratings: (1)Voltage applied at DVCC and AVCC pins to VSS: –0.3 V to 4.1 V; (2)–0.3 V to (VCC + 0.3 V),; (3)Voltage applied to any pin (excluding VCORE, RF_P, RF_N, and R_BIAS): 4.1 V Max; (4)Voltage applied to VCORE, RF_P, RF_N, and R_BIAS: –0.3 V to 2.0 V; (5)Input RF level at pins RF_P and RF_N: 10 dBm; (6)Diode current at any device terminal: ±2 mA; (7)Storage temperature range, Tstg: –55 to 105℃; (8)Maximum junction temperature, TJ: 95℃.
Features
CC430F5135 features: (1)True System-on-Chip (SoC) for Low-Power Wireless Communication Applications; (2)Wide Supply Voltage Range: 1.8 V to 3.6 V; (3)Ultralow Power Consumption; (4)MSP430 System and Peripherals High-Performance Sub-1-GHz RF Transceiver Core.

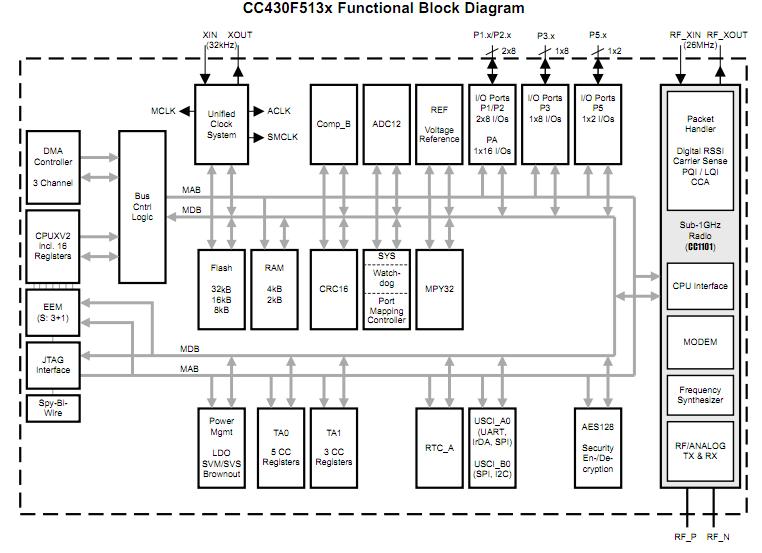

Diagrams
