Product Summary
The TDA5100 is a single chip ASK transmitter for the frequency band 315 MHz. The IC offers a high level of integration and needs only a few external components. The TDA5100 contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery live. Additionally features like a power down mode, a low power detect and a divided clock output are implemented. The applications of the TDA5100 include Keyless entry systems, Remote control systems, Alarm systems and Communication systems.
Parametrics
TDA5100 absolute maximum ratings: (1) Junction Temperature, TJ: -40 to 150℃; (2)Storage Temperature, Ts: -40 to 125℃; (3)Thermal Resistance, RthSA: 230 K/W; (4)ESD integrity, all pins, VESD: -1 to +1 kV.
Features
TDA5100 features: (1)fully integrated frequency synthesizer; (2)VCO without external components; (3)high efficiency power amplifier; (4)frequency range 315 MHz; (5)ASK modulation ; (6)low supply current (typically < 7mA); (7)voltage supply range 2.1 - 4 V; (8)power down mode; (9)low voltage sensor; (10)low external component count.

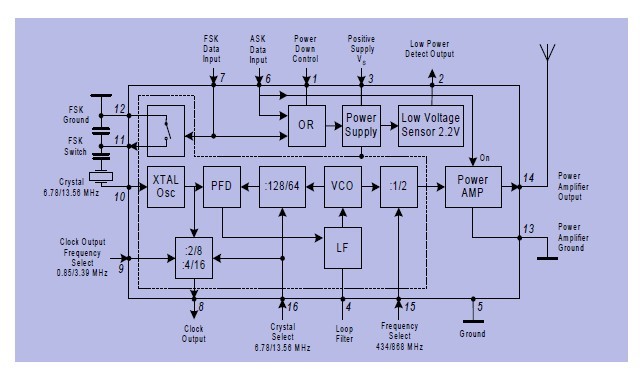

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA5100 |
Infineon Technologies |
RF Transmitter CONTROL |
Data Sheet |
|
|
||||||||||
 |
TDA5100A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
