TDA5211

Superheterodyne Receiver, P-TSSOP-28, 5.7mA, 4.5 V ~ 5.5 V, 310MHz ~ 350MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.40

PartNumber:: TDA5211

Brand:: Infineon Technologies AG - Infineon | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-13

From Other Seller

Part Number:TDA5211
US $1.10 - 1.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

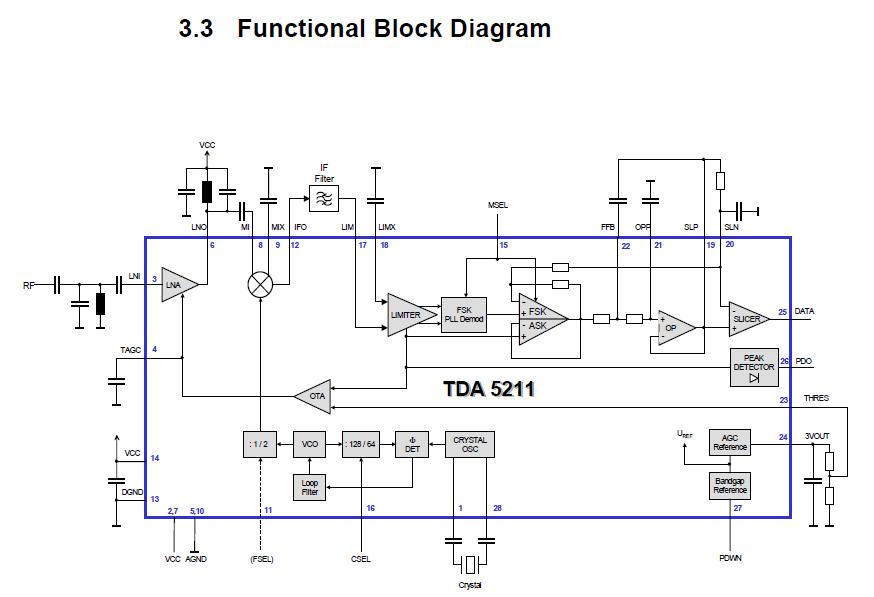

The TDA5211 is a very low power consumption single chip FSK/ASK Superheterodyne Receiver (SHR) for the frequency band 310 to 350 MHz that is pin compatible with the ASK Receiver TDA5201. The TDA5211 offers a high level of integration and needs only a few external components. The TDA5211 contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a PLL FSK demodulator, a data filter, a data comparator (slicer) and a peak detector. Additionally there is a power down feature to save battery life. The applications of the TDA5211 include Keyless Entry Systems, Remote Control Systems, Alarm Systems, Low Bitrate Communication Systems.

Parametrics

TDA5211 absolute maximum ratings: (1)Supply Voltage: -0.3 to 5.5 V; (2)Junction Temperature: -40 to +150 ℃; (3)Storage Temperature: -40 to +125 ℃; (4)Thermal Resistance: 114 K/W; (5)ESD integrity, all pins excl. Pins 1,3, 6, 28: +2 kV, ESD integrity Pins 1,3,6,28: +1.5 kV.

Features

TDA5211 features: (1)Low supply current (Is = 5.7 mA typ. in FSK mode, Is = 5 mA typ. in ASK mode); (2)Supply voltage range 5V ±10%; (3)Power down mode with very low supply current (50nA typ.); (4)FSK and ASK demodulation capability; (5)Fully integrated VCO and PLL Synthesiser; (6)ASK sensitivity better than -110 dBm over specified temperature range (- 40 to +105℃); (7)Selectable frequency ranges 310-330 MHz and 330-350 MHz; (8)Limiter with RSSI generation, operating at 10.7MHz; (9)Selectable reference frequency; (10)2nd order low pass data filter with external capacitors; (11)Data slicer with self-adjusting threshold; (12)FSK sensitivity better than -102 dBm over specified temperature; (13)range (- 40 to +105℃).
