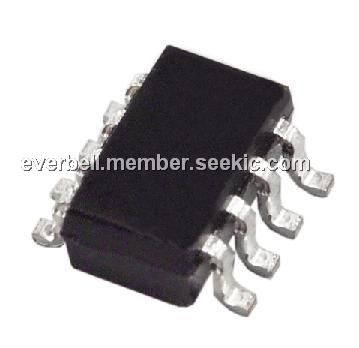

TS3A4741DCNR

SPST analog switch, SOT23-8, –0.3 to 4 V, –100 to 100 mA, TS3A4741DCNR, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: TS3A4741DCNR

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-13

From Other Seller

Part Number:TS3A4741DCNR
US $0.10 - 0.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

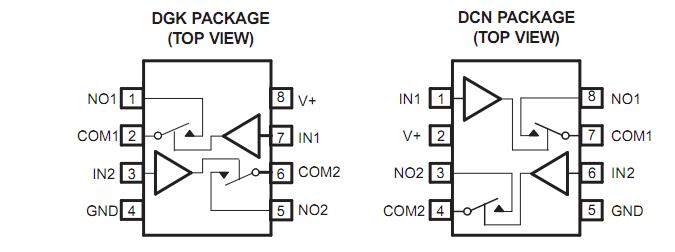

The TS3A4741DCNR is a low ON-state resistance (ron ), low-voltage, dual single-pole/single-throw (SPST) analog switch that operates from a single 1.6-V to 3.6-V supply. This device has fast switching speeds, handles rail-to-rail analog signals, and consumes very low quiescent power. The digital logic input is 1.8-V CMOS compatible when using a single 3-V supply. The TS3A4741DCNR has two normally open (NO) switches that are available in 8-pin SOT-23 and MSOP packages. The applications of the TS3A4741DCNR include Power Routing, Battery-Powered Systems, Audio and Video Signal Routing, Low-Voltage Data-Acquisition Systems, Communications Circuits, PCMCIA Cards, Cellular Phones, Modems and Hard Drives.

Parametrics

TS3A4741DCNR absolute maximum ratings: (1)V+, Supply voltage reference to GND: –0.3 to 4 V; (2)VNO, VCOM, VIN, Analog and digital voltage range: –0.3V to + + 0.3V; (3)INO, ICOM, On-state switch current: –100 to 100 mA ; (4)I+, IGND, Continuous current through V + or GND: ± 100 mA; (5)Peak current pulsed at 1 ms, 10% duty cycle: ± 200 mA; (6)θJA, Package thermal impedance: 88℃/W; (7)TA, Operating temperature range: –40 to 85℃; (8)TJ, Junction temperature: 150℃; (9)Tstg, Storage temperature range: –65 to 150℃.

Features

TS3A4741DCNR features: (1)Low ON-State Resistance (r on ): 0.9Ω Max (3-V Supply); 1.5Ω Max (1.8-V Supply); (2)0.4- Ω Max r on Flatness (3-V Supply); (3)1.6-V to 3.6-V Single-Supply Operation; (4)Available in SOT-23 and MSOP Packages; (5)High Current-Handling Capacity (100 mA Continuous); (6)1.8-V CMOS Logic Compatible (3-V Supply); (7)Fast Switching: t ON = 14 ns, t OFF = 9 ns.
