Product Summary

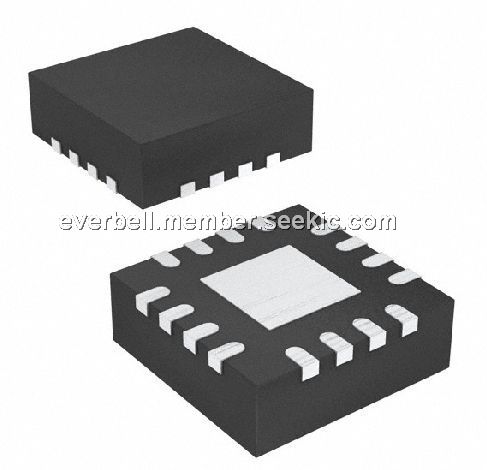

The TPS54218RTER is a full featured 6 V, 2 A, synchronous step down current mode converter with two integrated MOSFETs. The TPS54218RTER enables small designs by integrating the MOSFETs, implementing current mode control to reduce external component count, reducing inductor size by enabling up to 2 MHz switching frequency, and minimizing the IC footprint with a small 3mm × 3mm thermally enhanced QFN package. The applications of the TPS54218RTER include Low-Voltage, High-Density Power Systems, Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors, Broadband, Networking and Optical Communications Infrastructure.

Parametrics

TPS54218RTER absolute maximum ratings: (1)Input voltage, VIN: –0.3 to 7 V; EN: –0.3 to 7V; BOOT: PH + 8V; VSENSE: –0.3 to 3V; COMP: –0.3 to 3V; PWRGD: –0.3 to 7V; SS: –0.3 to 3V; RT/CLK: –0.3 to 6V; (2)Output voltage, BOOT-PH: 8 V; PH: –0.6 to 7V; PH 10 ns; Transient: –2 to 7V; (3)Source current, EN: 100 μA; RT/CLK: 100 μA; (4)Sink current, COMP: 100 μA; PWRGD: 10 mA; SS: 100 μA; (5)Electrostatic discharge (HBM): 2 kV; (6)Electrostatic discharge (CDM): 500 V; (7)Operating Junction temperature, Tj: –40 to 150℃; (8)Storage temperature, Tstg: –65 to 150℃.

Features

TPS54218RTER features: (1)Two 30 mΩ (typical) MOSFETs for High Efficiency at 2 A loads; (2)200kHz to 2MHz Switching Frequency; (3)0.8 V ± 1% Voltage Reference Over Temperature; (4)Synchronizes to External Clock; (5)Adjustable Slow Start/Sequencing; (6)UV and OV Power Good Output; (7)Low Operating and Shutdown Quiescent Current; (8)Safe Start-up into Pre-Biased Output; (9)Cycle by Cycle Current Limit, Thermal and Frequency Fold Back Protection; (10)–40 to 150℃ Operating Junction Temperature Range; (11)Thermally Enhanced 3mm × 3mm 16-pin QFN.
