Product Summary

The AM26LS31CNSR is a quadruple complementary-output line driver, which is designed to meet the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs of the AM26LS31CNSR has high-current capability for driving balanced lines such as twisted-pair or parallel-wire transmission lines, and they are in the high-impedance state in the power-off condition. The enable function of the AM26LS31CNSR is common to all four drivers and offers the choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry reduces power consumption without sacrificing speed.

Parametrics

AM26LS31CNSR absolute maximum ratings: (1)Supply voltage: 7 V; (2)Input voltage: 7 V; (3)Output off-state voltage: 5.5 V; (4)Package thermal impedance: D package 73 ℃/W, DB package 82 ℃/W, N package 67 ℃/W, NS package 64 ℃/W; (5)Lead temperature 1,6 mm (1/16 in) from case for 10 s: 260 ℃; (6)Lead temperature 1,6 mm (1/16 in) from case for 60 s: J package: 300 ℃; (7)Storage temperature range: -65 to 150 ℃.

Features

AM26LS31CNSR features: (1)Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B and ITU; (2)Operates From a Single 5-V Supply; (3)TTL Compatible; (4)Complementary Outputs; (5)High Output Impedance in Power-Off Conditions; (6)Complementary Output-Enable Inputs.

Diagrams

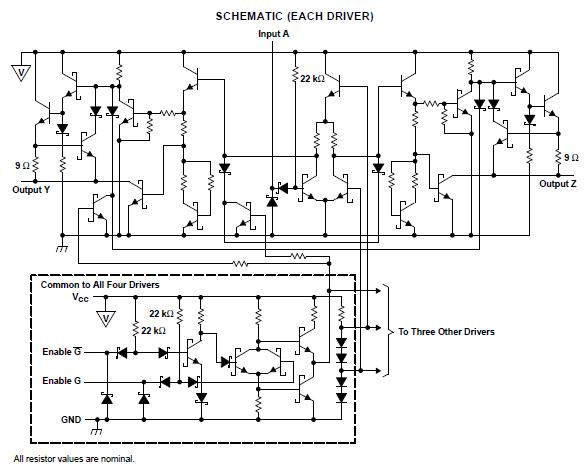

AM26LS31CNSR diagram
